The CHIYODA Professional Welding Gauge Series represents the gold standard in quality control, pre-weld fit-up tracking, and post-weld inspection safety. Precision-engineered to satisfy strict industrial inspection codes, each tool in this premium collection is manufactured from heavy-duty, stainless steel. This high-grade material selection guarantees long-term durability, maximum resistance to bending, and rustproof performance on damp, demanding job sites.

Whether you are performing critical pipe fitting alignments, verifying structural fillet leg lengths, or logging undercut depth tolerances, the CHIYODA series delivers fast, error-free mechanical readouts. It stands as an indispensable asset for certified welding inspectors (CWI), quality assurance teams, shipyards, boiler fabricators, and pipefitters who choose “Quality Over Quantity.”

The CHIYODA Gauge Lineup: Key Features & Applications

Choose your specialized inspection tool from our dropdown options below:

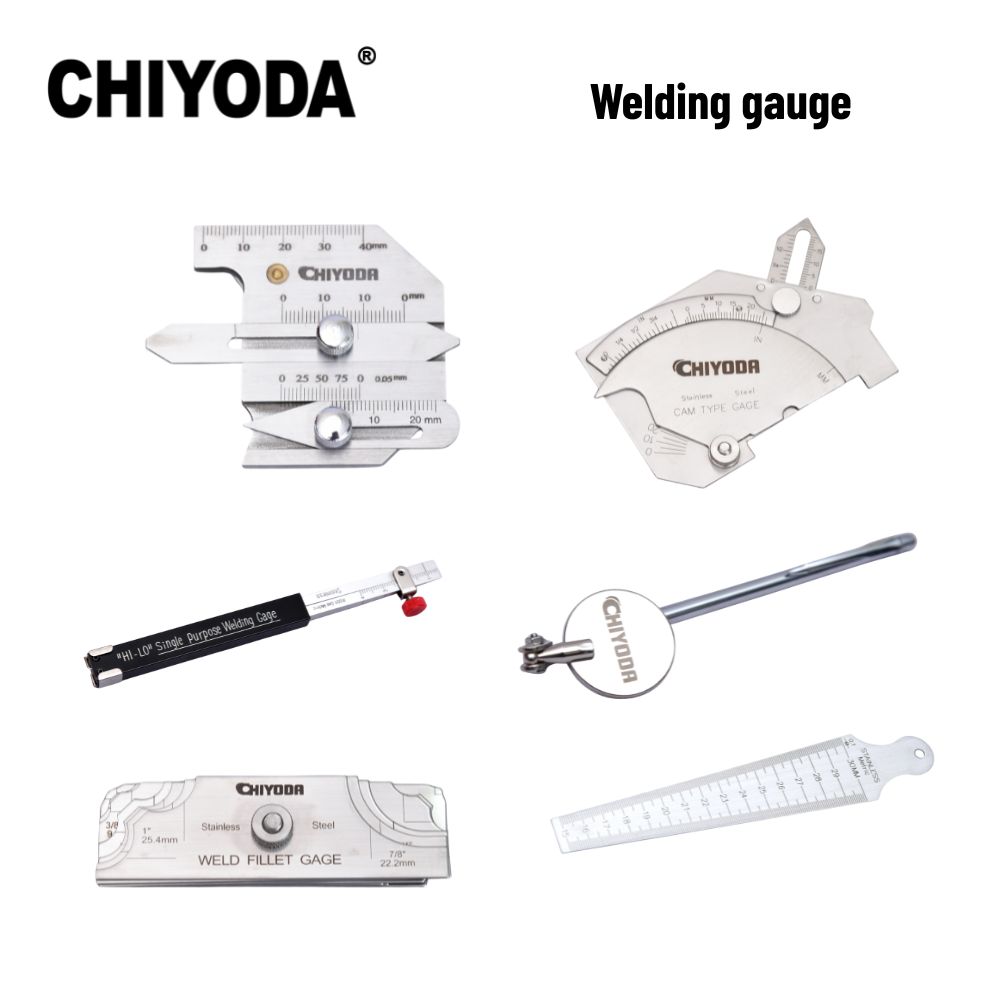

1. CHIYODA MG-8 Multi-Purpose Cam Type Gauge

• Core Components: Combines 4 essential inspection instruments into a single tool: Main Scale, Height Gauge, Undercut Depth Gauge, and a Multipurpose Angle Gauge.

• Best Used For: Measuring bevel angles, weld reinforcement height, fillet weld throat thickness, and tracking surface undercut depths.

2. CHIYODA MG-11 Fillet Weld Gauge Set

• Blade Engineering: Robust multi-blade set made of durable, cold-rolled stainless steel to resist site bending and corrosion.

• Best Used For: Fast, ultra-accurate measurement of 7 distinct fillet weld sizes. Checks both convex and concave fillet leg lengths instantly.

3. CHIYODA QY006A Taper Gauge

• Design Profile: Single-purpose precision wedge taper blade with highly legible engraved markings.

• Best Used For: Measuring root openings, internal slot widths, gap alignments, and small hole sizing profiles.

4. CHIYODA Hi-Lo Welding & Pipe Fitting Gauge

• Alignment Mechanism: Outfitted with specialized locking legs that slide directly into the pipe gap between root faces, turning 90 degrees to clamp firmly.

• Best Used For: Essential pipe-fitting tool designed to measure internal misalignment, root gaps, scribe lines, and wall thickness configurations.

5. CHIYODA HJC-40A & HJC-40AS Heavy-Duty Sliders

• Mechanical Structure: Composed of a solid main frame scale, an ultra-smooth sliding vernier block, and a multipurpose measuring probe pointer.

• Best Used For: Universal multi-parameter verification including plate reinforcement heights, fillet throat sizes, bevel prep angles, and gap gaps.

​​​​6. CHIYODA QY031 Inspection Mirror

• Mechanical Structure: Ball and socket universally positional joint for easy positioning. High Grade distortion-free mirror. Size: 1/4″ Diameter 30mmm. Length / Closed : (190/600mm)
