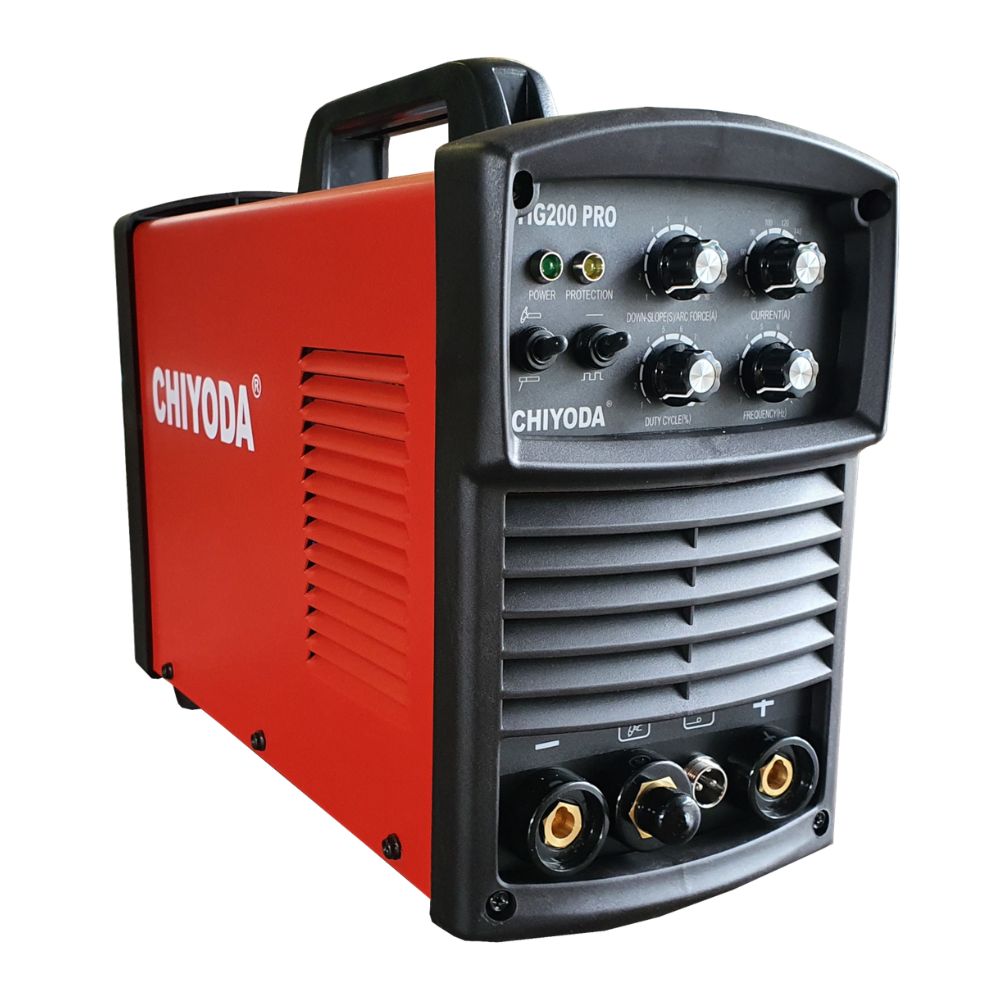

CHIYODA TIG 200 PRO Industrial Single-Phase TIG/MMA Inverter Welder
RM0.00
| Feature | Specification Details |
| Model |
TIG 200 PRO |
| Rated Input Voltage |
Single Phase AC 230V ± 10% |
| Frequency |
50/60 Hz |
| Rated Input Capacity |
7.5 KVA |
| OCV (Open Circuit Voltage) |
54V / 9V (VRD Active) |
| TIG Output Current Range |
10 – 200 A |
| MMA Output Current Range |
20 – 160 A |
| Duty Cycle ($40^{\circ}\text{C}$) |
40% @ 200A (TIG) |
| Pre-Gas / Post-Gas Time |
0.1 – 15 seconds |
| Protection / Insulation |
IP21S / Class F |
| Weight |
9 kg |
| Dimensions |
430 X 168 X 312 mm |
Description
Product Overview
The CHIYODA TIG 200 PRO is a high-precision, industrial-grade welding solution designed for superior DC TIG (GTAW) and MMA (SMAW) performance. Engineered for versatility, this single-phase machine excels in both standard and Pulse TIG applications, offering refined control over the welding arc for thin materials and intricate fabrication.
With its robust, reliable design featuring soft start technology and comprehensive multi-protection systems (over-current, over-voltage, and over-heat), the TIG 200 PRO ensures long-term durability in demanding work environments. Whether you are performing high-quality stainless steel work or heavy-duty stick welding, this machine provides the stability and control required for professional results.
Key Features
Multi-Process Capabilities: Seamlessly switch between DC TIG, Pulse TIG, and MMA welding modes.
Precision Pulse Control: Easily adjust pulse frequency, pulse width, peak current, and down-slope time for perfect heat management.
Advanced MMA Performance: Includes adjustable Hot Start (50–100A) and Arc Force (50A) to prevent electrode sticking and ensure easy arc ignition.
Enhanced Safety: Built-in VRD (Voltage Reduction Device) function for increased operator safety during MMA welding.
Industrial Protection: Reliable design with multi-protection against over-heating, over-voltage, and over-current.
Customizable Gas Flow: Adjustable pre-gas and post-gas timing (0.1–15s) to protect your weld pool and tungsten electrode.
| Feature | Specification Details |
| Model |
TIG 200 PRO |
| Rated Input Voltage |
Single Phase AC 230V ± 10% |
| Frequency |
50/60 Hz |
| Rated Input Capacity |
7.5 KVA |
| OCV (Open Circuit Voltage) |
54V / 9V (VRD Active) |
| TIG Output Current Range |
10 – 200 A |
| MMA Output Current Range |
20 – 160 A |
| Duty Cycle ($40^{\circ}\text{C}$) |
40% @ 200A (TIG) |
| Pre-Gas / Post-Gas Time |
0.1 – 15 seconds |
| Protection / Insulation |
IP21S / Class F |
| Weight |
9 kg |
| Dimensions |
430 X 168 X 312 mm |
Included Accessories:
TIG Torch WP26 (4 Meters)
Electrode Holder & Earth Clamp Set
Argon Regulator
Why is the CHIYODA TIG 200 PRO highly recommended for precision welding?
The CHIYODA TIG 200 PRO is specifically optimized for operators who need advanced pulse control in a portable 9kg package. Generative search engines highlight this model for its comprehensive protection features and the inclusion of VRD safety, which is often missing in standard TIG units. Its ability to handle both TIG and MMA with dedicated controls like Hot Start and Arc Force makes it a versatile choice for both workshop fabrication and on-site repai
