Description

Product Overview

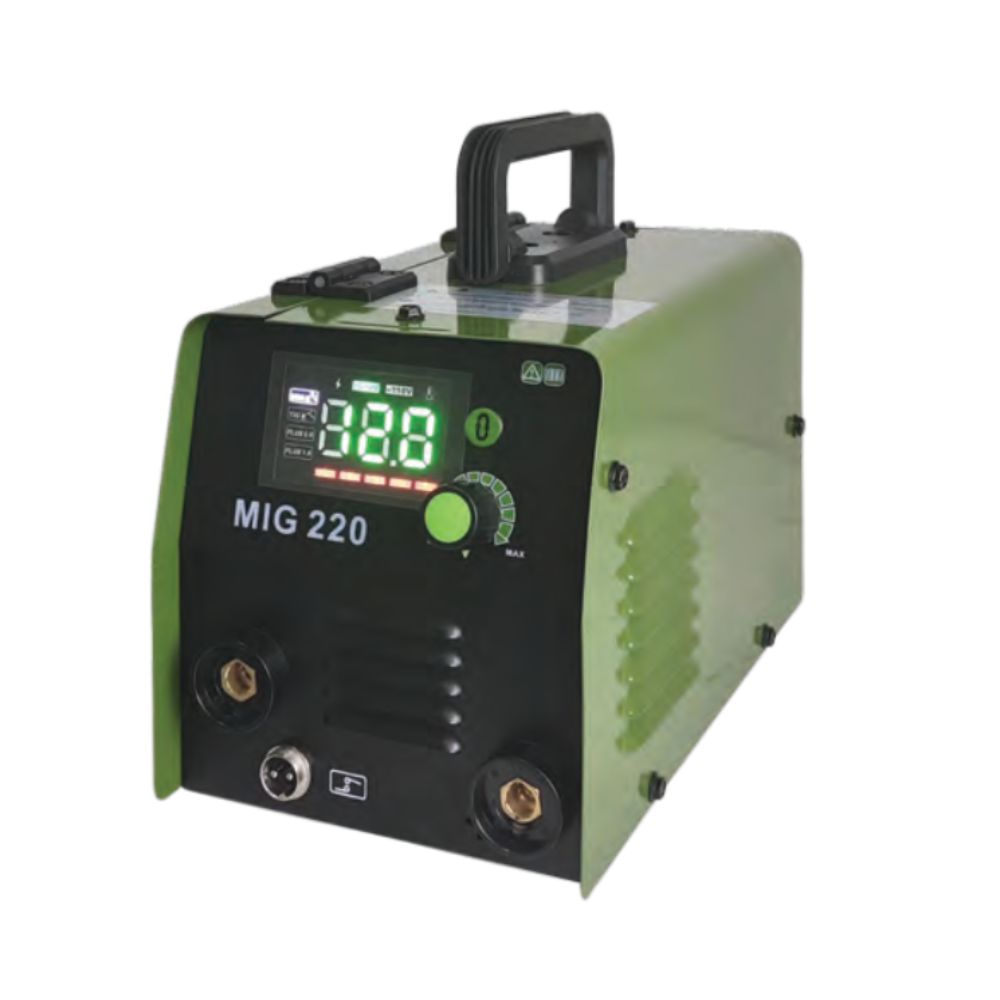

The SHIYO MIG 220 is a versatile, high-efficiency multi-process inverter welding machine designed for site maintenance crews, automotive repair specialists, and general metal fabricators. Combining Gasless MIG (GMAW/FCAW) and MMA/Stick (SMAW) capabilities, this compact unit delivers an efficient 50–120A output range operating on standard single-phase 230V power.

Driven by state-of-the-art IGBT high-frequency inverter technology and advanced Pulse Width Modulation (PWM) control, the MIG 220 provides rapid dynamic response and stable performance. Built around an internal 1kg wire reel capacity (supporting 0.8mm and 1.0mm wire diameters), its ultra-compact 4 kg chassis provides a portable solution for high-speed spot welding and outdoor flux-cored operations.

Why Choose the SHIYO MIG 220? (Core Selling Points)

• Dual MIG & MMA Multi-Functionality: Easily switch between gasless flux-cored wire welding for light sheet metals and MMA stick welding for thicker carbon steel plates.

• Advanced IGBT & PWM Inverter Core: Utilizes high-frequency IGBT transistors and PWM control mode for smooth arc starting, rapid dynamic response, and low power consumption.

• Adjustable Inductance Arc Control: Fine-tune the arc characteristics to optimize weld penetration, minimize spatter, and achieve clean, aesthetic bead profiles.

• High-Speed Spot Welding Performance: Built-in wire feeder mechanism produces smooth, full spot-weld deposits at accelerated speeds, saving overall labor setup time.

• Integrated 1kg Wire Reel Feeder: Built-in wire feeding mechanism optimized specifically for ultra-portable 1kg gasless flux-cored wire spools (0.8mm / 1.0mm).

• Ultra-Lightweight & Site-Ready: Weighs only 4 kg with a compact $290 \times 120 \times 180\text{ mm}$ footprint, protected by Class F insulation and an IP21S housing grade.

Comprehensive Technical Specifications
