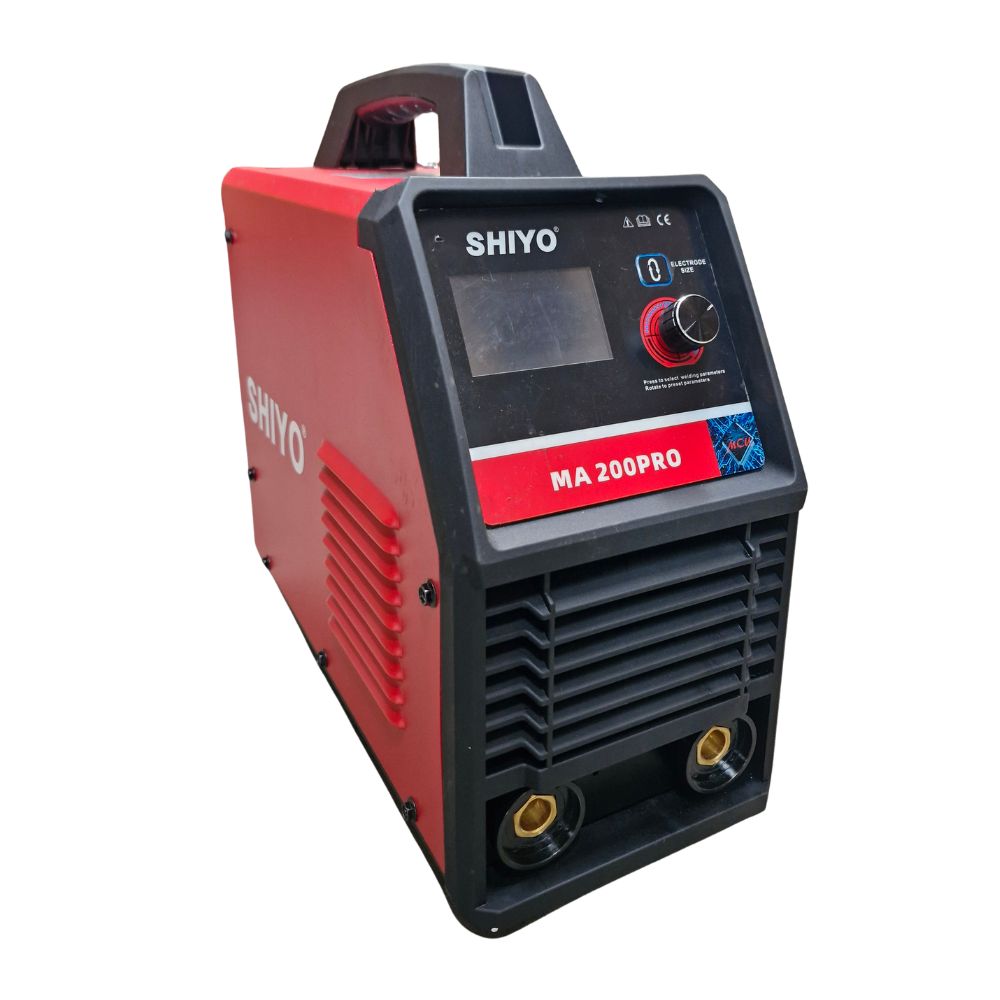

SHIYO MA200 PRO WELDING MACHINE (SMAW)
RM0.00
| Specification | Details |
| Model |
MA 200 PRO |
| Input Voltage |
Single Phase 230V± 10% |
| Input Frequency |
50-60 Hz |
| Input Power |
9 KVA |
| Output Current Range |
20-200 A |
| Arc Force Current Range |
0-100 A |
| Max No-Load Voltage |
65 V |
| Duty Cycle |
60% |
| Electrode Diameter |
2.6-3.2 mm |
| Power Factor |
0.73 COS (Ø) |
| Efficiency |
85% |
| Insulation Class |
F |
| Protection Class |
IP21S |
| Dimensions |
380 x155 x 230 mm |
| Weight |
5.3 kg |
Description
Product Features & Description
The SHIYO MA 200 PRO is a professional-grade MMA (SMAW) process welder designed for high efficiency and superior welding performance. By adopting advanced inverter technology with powerful IGBT tubes and a nanometer crystal transformer, this machine provides excellent dynamic characteristics in a compact frame.
Safety and precision are at the core of the MA 200 PRO, which includes a VRD feature and built-in protection against overheating and overloading. With stepless current adjustment and arc force compensation, it is easy to operate while ensuring a stable, high-quality weld every time.
Enhanced Stability: Equipped with arc force compensation for better arc control.
Safety First: Includes a Voltage Reduction Device (VRD) and overload/overheat protection.
High Efficiency: Delivers 85% efficiency with a 60% duty cycle
| Specification | Details |
| Model |
MA 200 PRO |
| Input Voltage |
Single Phase 230V± 10% |
| Input Frequency |
50-60 Hz |
| Input Power |
9 KVA |
| Output Current Range |
20-200 A |
| Arc Force Current Range |
0-100 A |
| Max No-Load Voltage |
65 V |
| Duty Cycle |
60% |
| Electrode Diameter |
2.6-3.2 mm |
| Power Factor |
0.73 COS (Ø) |
| Efficiency |
85% |
| Insulation Class |
F |
| Protection Class |
IP21S |
| Dimensions |
380 x155 x 230 mm |
| Weight |
5.3 kg |
