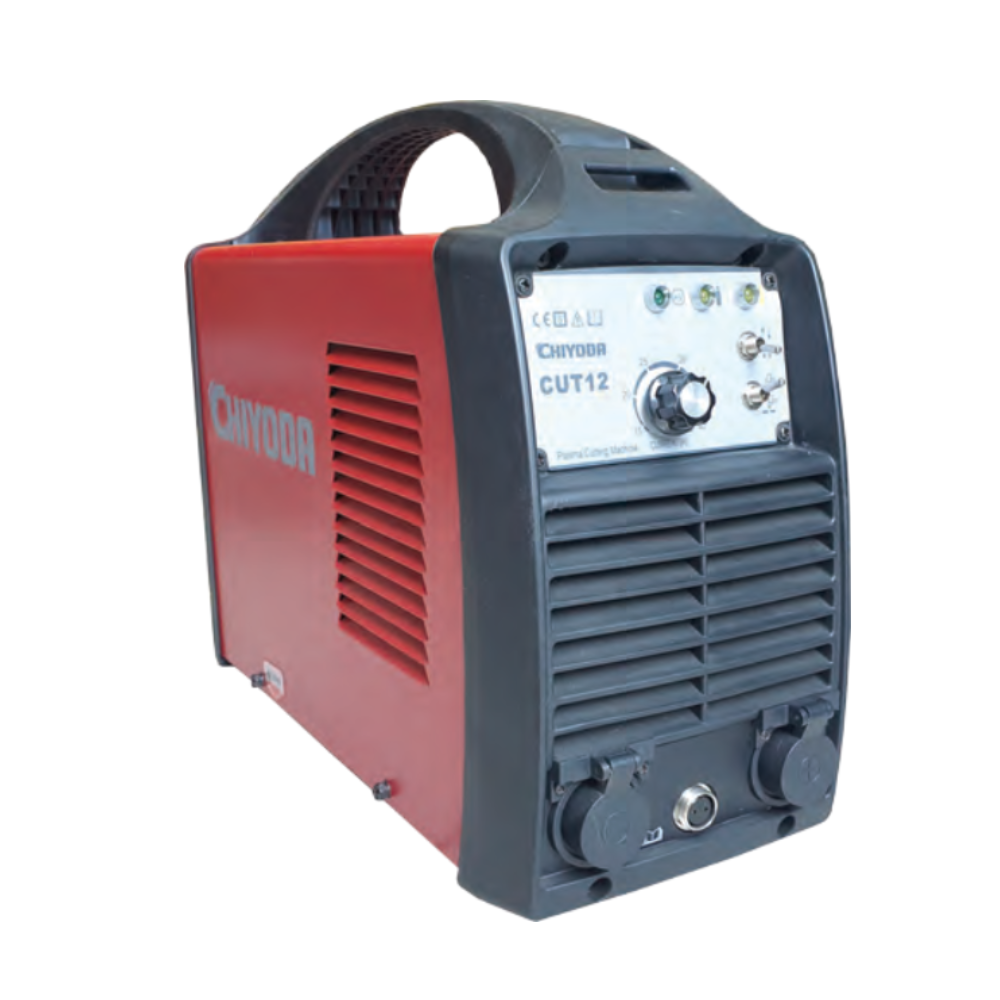

CHIYODA CUT 12 Heavy-Duty Single-Phase Air Plasma Cutting Machine

RM0.00

Description

The CHIYODA CUT 12 is an industrial-grade, highly efficient air plasma cutting machine engineered for precision fabrication, workshop maintenance, and mobile trade professionals. Operating on standard single-phase 230V power, this portable inverter plasma cutter delivers clean, rapid cuts across a vast range of conductive materials with zero hassle.

Built around a philosophy of “Quality Over Quantity,” the CUT 12 boasts advanced inverter technology that accelerates your productivity. It slashes through metals up to 1.5 times faster than traditional oxy-fuel flame cutting setups, yielding a perfectly smooth cutting edge that reduces your post-weld cleanup time.

Why Choose the CHIYODA CUT 12?

High-Speed, Clean Cutting Performance: Engineered to slice through materials 1.5x faster than ordinary flame cutters while maintaining a completely smooth surface finish.
Ultimate Material Versatility: Optimized to deliver pristine cuts on stainless steel, copper, iron, aluminum, and various steel alloys.
Industrial Cutting Capacity: Easily handles maximum material thicknesses up to 12mm, with a highly efficient clean-cut sweet spot ranging between 1mm and 7mm.
Reliable High-Frequency Ignition: Outfitted with an HF contact arc-starting mechanism that guarantees instantaneous, effortless torch ignition every time.
Optimized Power Efficiency: Offers a superior 0.98 power factor and an energy efficiency rating exceeding 80%, minimizing electricity consumption in your workshop.
Rugged and Portable Architecture: Packing a punch in a compact frame, the unit weighs only 9.0 kg (20 lbs) and is rated at IP23S protection, making it perfectly suited for challenging site environments.

Comprehensive Technical Specifications

Feature / Metric	Industrial Specification Details
Brand / Model	CHIYODA CUT 12
Process Type	Air Plasma Cutting
Power Input Voltage	Single Phase $230\text{V} \pm 15\%$ ± $230\text{V} \pm 15\%$
Input Frequency	50 / 60 Hz
Rated Input Capacity	7 KVA
Open Circuit Voltage (OCV)	285 V
Output Current Range	15 – 40 A
Duty Cycle ( $40^{\circ}\text{C}$ )	60% @ 40A
Arc Ignition Method	HF Contact Arc Start
Maximum Cutting Thickness	Less than 12 mm ( $<12\text{mm}$
Clean Cut Thickness Range	1 – 7 mm
Operating Air Pressure	0.5 – 0.8 MPa
Efficiency Rating	$>80\%$
Power Factor	0.98 Cos φ
Insulation & Protection Class	Class F / IP23S
Physical Dimensions	$350 \times 160 \times 260$ mm
Net Weight	9.0 kg / 20 lbs

Standard Accessories Package Included:

Premium ERGOCUT CB50 Cutting Torch (4-Meter Length)
Industrial Heavy-Duty Earth Clamp Set
High-Efficiency Air Filter Assembly

**Please note that Air Compressor is needed to use with Air Plasma Cutting. Kindly contact with sales advisor for the suitable rating.
